P-Optic Fiber Cleaner

Name:P-Optic Fiber Cleaner

Details

                     P-type Fiber Cleaner



  P-type Fiber Cleaner is designed by Wuhan cleanet to meet the demand of critically cleaning in fiber connector and optical module manufacture on a large scale.
The distinguishing characteristic is high quality of cleaning .high efficiency, extremely low cost.

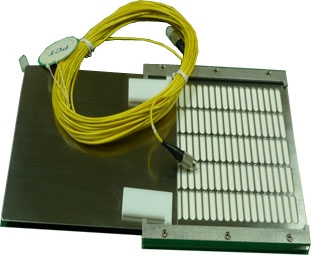

Product Picture
Descriptions



  Adopted modern design and patent material and special fiber of super clean, slot-board can be changed according to demand it is designed to be suitable for all the kind of optical fiber connector and photoelectric parts manufacture 。

Specification

●Shell material: duralumin/ stainless steel
●Cleaning material:Class-100 superfine fiber
●Number of Cleaning times :
200 times/piece(100times/side,both of sides can be used)
●Cleaning effect: -20~-50dB(return loss)
●Product weight:500g
●Size: 155mm (Width) X 155mm (Length) X 10mm (Thickness)

*Cleaning material can be changed.



Structure characteristic

●Base: duralumin material
●Cover: stainless steel, dustproof
●Rubber cushion :cover fiber connector to damage
●Slot board: duralumin material(it can be changed according to requirement of customer)
●Cleaning cloth:Class-100 superfine fiber .both sides are available.



Instruction

●Unclose the cover ,install the cleaning cloth and slot board on cleaner ,close the cover
●Slide the cover, reveal the cleaning slot ,putt fiber connector in the slot to scrape slightly
●Both of the cleaning cloth can be use .While A side used out .remove the plastic film of B side, install B side up-turned in the cleaner.
●Both of A and B used out ,new cleaning cloth should be changed.





Slide cover

●Slide to reveal it slightly by hand
●Remove the plastic film
●While use A side. B side covered by plastic film to avoid contaminated
●After A side is used out , to use B side, plastic film of B side must be removed
